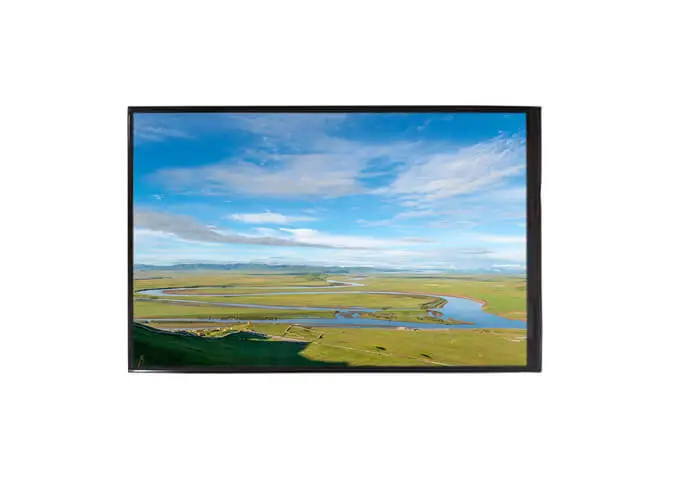

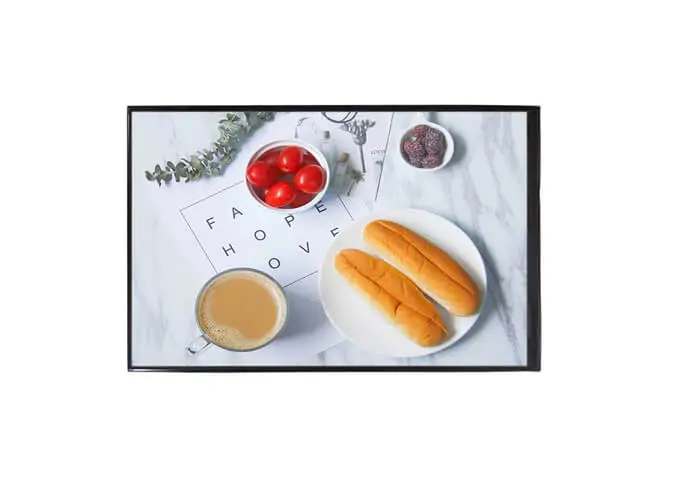

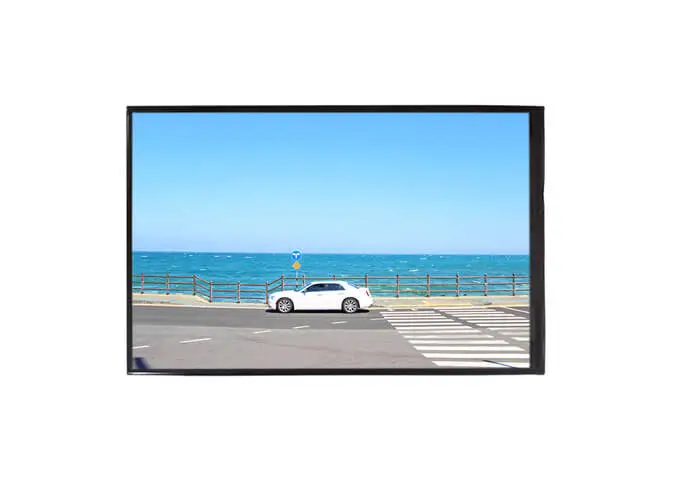

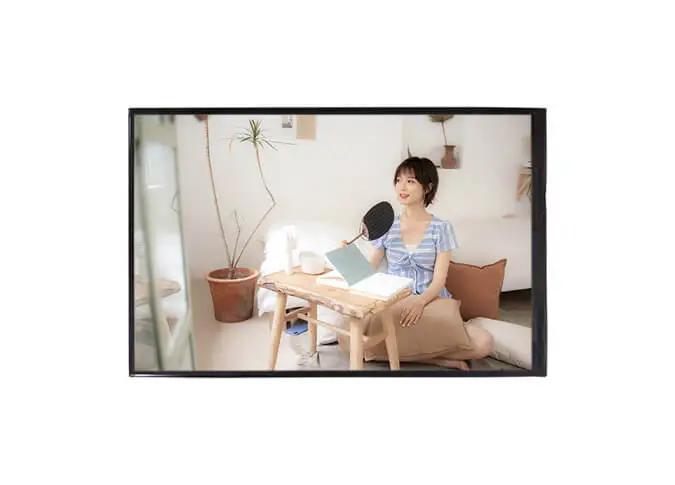

Интерфейс дюйма ТФТ ЛКД 1024*600 КВГА 50 ПИН РГБ дисплея 10,1 Z101060-P50 горизонтальный

Screen Size

10.1 inches

Diagonal

Number of Pixel

1024 RGB (H) x 600 (V)

Pixels

Display Area

222.72 (H) x 125.28 (V)

mm

Pixel Pitch

0.2175 (H) x 0.2088 (V)

mm

Outline Dimension

235x 143x6.6 (Typ)

mm

Pixel Arrangement

RGB Vertical stripe

――

Display Mode

Normally Black/Transmissive

――

Viewing Direction

ALL VIEWING

――

Display Color

16.7M

――

Luminance(cd/m2)

450(TYP)

nit

Contrast Ratio

800

――

Surface Treatmen

Anti-glare

――

Interface

RGB

Back-light

LED Side-light type

――

Drive IC

――

Operation Temperature

-20~70

℃

Storage Temperature

-30~80

℃

Weight

――

g

1-2

VLED+

P

LED back light(Anode)

3-4

VLED-

P

LED back light(Cathode)

5

GND

P

Ground.

6

VCOM

P

Common voltage

7

VDD

P

Power supply

8

MODE

I

DE/YSNC mode select

9

DE

I

Data enable pin

10

VSYNC

I

Frame sync signal

11

HSYNC

I

Line sync signal

12-19

B7~B0

I

Blue data bus

20-27

G7~G0

I

Green data bus

28-35

R7~R0

I

Red data bus

36

GND

Ground.

37

DCLK

I

Data clock

38

GND

P

Ground.

39

L/R

I

Right/Left sequence control of source driver

40

U/D

I

Gate driver Up/Down scan control of gate driver

41

VGH

I

Gate on voltage

42

VGL

P

Gate off voltage

43

AVDD

P

power for analog circuit

44

RESET

I

Chip reset pin

45

NC

-

No connection.

46

VCOM

P

Common voltage

47

DITHB

I

Dithering function

48

GND

P

Ground

49-50

NC

-

No connection.
