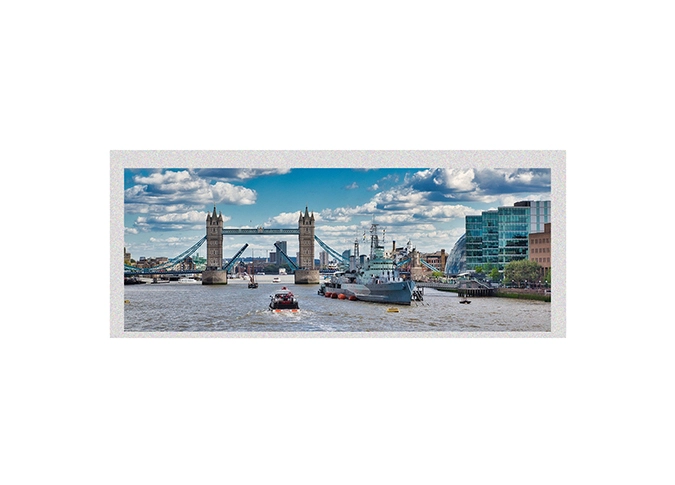

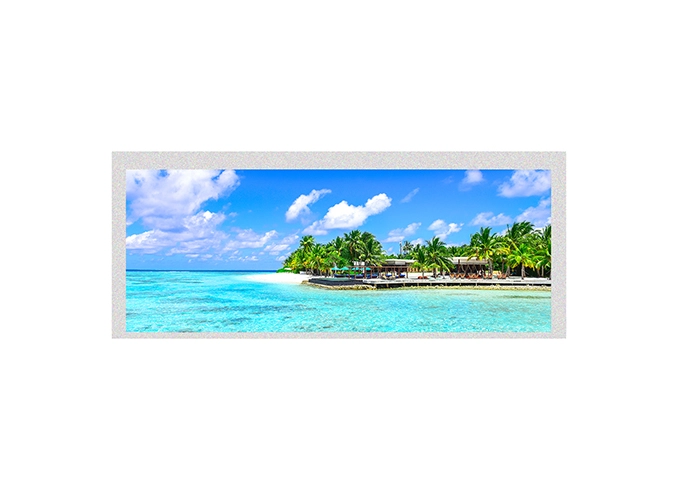

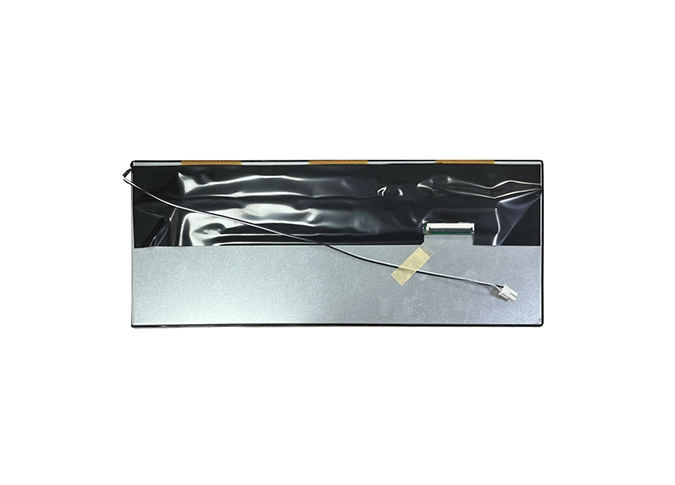

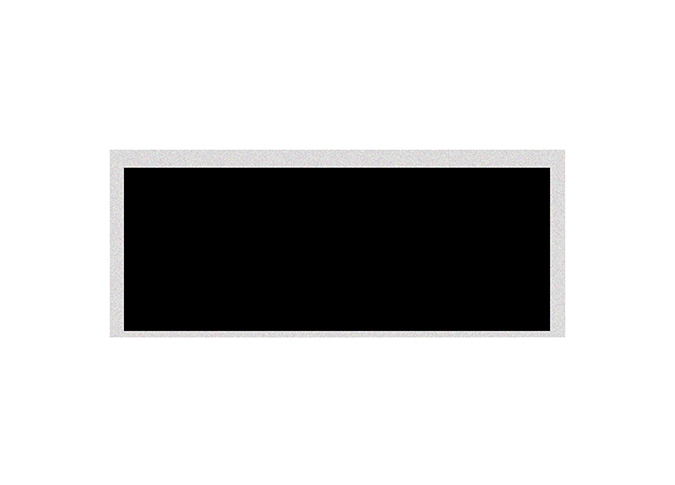

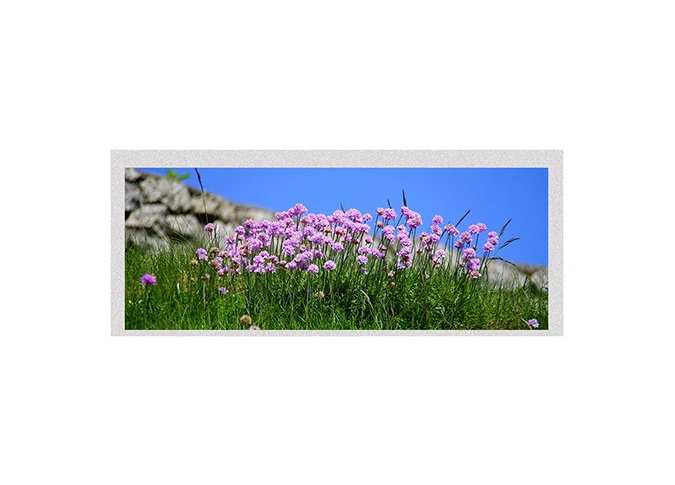

Z103002 10,25 тип интерфейс 600 cd/m2 адвокатского сословия Strectched дисплея дюйма 1920*720 IPS LCD LVDS

1

Display  resolution  (pixel)

1920*RGB*720

2

Active area (mm)

243.648mm x 91.368mm

3

Screen  size (inch)

10.25

4

Pixel pitc    (mm)

0.1269mm x 0.1269mm

5

Outline Dimension  (mm)

265.2mm x 109.2mm x 9.35mm

6

Weight (g)

110g

7

Surface treatment

HC/HC

8

Interface

LVDS

9

Shipment

FOG

10

Contrast ratio

1100

11

Response Time

20ms

12

Transmittance

2.4%

1

GND

P

Ground

2

GND

P

Ground

3

GND

P

Ground

4

VDD

P

External main and I/O power supply ; +3.3V

5

VDD

P

External main and I/O power supply ; +3.3V

6

VDD

P

External main and I/O power supply ; +3.3V

7

VDD

P

External main and I/O power supply ; +3.3V

8

GND

P

Ground

9

NC

-

Not connect

10

NC

-

Not connect

11

NC

-

Not connect

12

GND

P

Ground

13

OLV0P

I

LVDS odd data 0-

14

OLV0P

I

LVDS odd data 0+

15

GND

P

Ground

16

OLV1N

I

LVDS odd data 1-

17

OLV1P

I

LVDS odd data 1+

18

GND

P

Ground

19

OLV2N

I

LVDS odd data 2-

20

OLV2P

I

LVDS odd data 2+

21

GND

P

Ground

22

OLVCLKN

I

LVDS odd clk -

23

OLVCLKP

I

LVDS odd clk +

24

GND

P

Ground

25

OLV3N

I

LVDS odd data 3-

26

OLV3N

I

LVDS odd data 3-

27

GND

P

Ground

28

ELV0N

I

LVDS even data 0-

29

ELV0P

I

LVDS even data 0+

30

GND

P

Ground

31

ELV1N

I

LVDS even data 1-

32

ELV1P

I

LVDS even data 1+

33

GND

P

Ground

34

ELV2N

I

LVDS even data 2-

35

ELV2P

I

LVDS even data 2+

36

GND

P

Ground

37

ELVCLKN

I

LVDS even clk -

38

ELVCLKP

I

LVDS even clk +

39

GND

P

Ground

40

ELV3N

I

LVDS even data 3-

41

ELV3P

I

LVDS even data 3+

42

GND

P

Ground

43

RESET

I

Global reset pin

RESET="H",normal operation.(Default)

RESET="L",LCM is in reset state.

44

STBYB

I

Standby mode control.

STBYB="H",normal operation.

STBYB="L",LCM is in standby state.(Default)

45

SHLR

I

Horizontal shift direction (source output) selection. RL = "H": Left -> Right(default)

RL = "L": Right -> Left

46

UPDN

I

Vertical shift direction (gate output) selection. TB = "H": Top ->Bottom (default)

TB = "L": Bottom->Top

47

NC

-

Not connect

48

GND

P

Ground

49

BIST

I

Enable bult-in selftest (BIST)function

BIST=H,BIST Mode

BIST=L,Normal Mode

50

NC

-

Not connect
