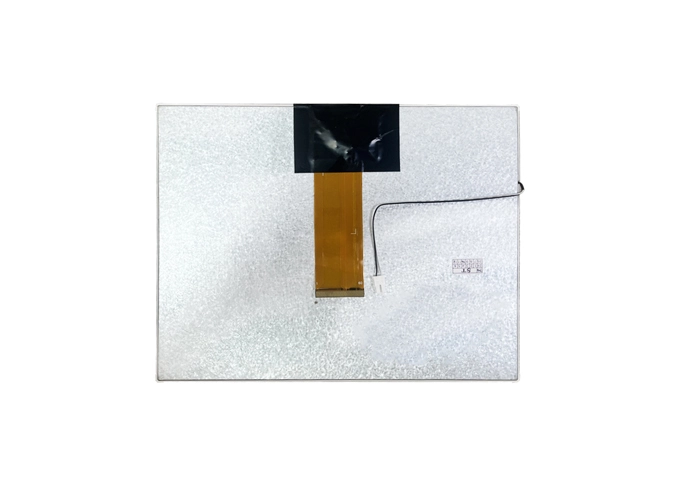

Промышленный экран дюйма 800x600 LVDS TFT LCD экрана 10,4 Z104001

Active Area

211.2x158.4

mm

Number Of Pixels

800*600

pixels

Pixel Pitch

88x264

mm

Pixel Arrangement

Pixels RGB stripe arrangement

Display Mode

TN, Normally White

Display Colors

16.7M

colors

Real 8bit

Surface Treatment

AG25

Contrast Ratio

typ 800:1

Viewing Angle(CR>10)

typ 80/80/65/75

deg.

L/R/U/D

Response Time

typ 30, max 35

ms

Color Gamut

min 50% typ 55%

Brightness

min 300, typ 350

cd/m2

Brightness Uniformity

min 70%，typ 80%

Power Consumption

LCD 0.76W Max.

BLU 3.36W Max.

watt

It is estimate value

Outline Dimension

228.5(H)*175.5(V)

mm

Weight

300g Max

gram

Back-light

Down edge side, one LED Light ba r

1

GND

Ground

2

NC

No connection

3

VCC

Power Supply,3.0V~3.6V,IVCC 0.23A max

4-11

R0-R7

Red data Input

12-19

G0-G7

Green data Input

20-27

B0-B7

Blue data Input

28

DCLK

Clock input(Latch data at falling edge)

29

DE

Data enable

30

HSYNC

Horizontal sync input. Negative polarity

31

VSYNC

Vertical sync input. Negative polarity

32

MODE

DE/SYNC mode select. H： DE mode, L/NC： SYNC mode

33

NC

No connection

34

CSB

Serial communication chip select

35

RESET

Reserved for BOE use only for RESET. Please leave it open.

36

VCC

Power Supply3.0V~3.6V,IVCC 0.23A max

37

STBYB

Reserved for BOE use only for STBYB. Please leave it open.

38-39

GND

Ground

40-41

NC

No connection

42

SEL

H/NC:6Bit ， L:8Bit

51

SCL

Reserved for BOE use only for SCL. Please leave it open.

52

SDA

Reserved for BOE use only for SDA. Please leave it open.

53-54

NC

No connection

55

VOTP

Reserved for BOE use only for VDD_OTP. Please leave it open.

56

NC

No connection

57

VCC

Power Supply, 3.0V~3.6V,IVCC 0.23A max

58

NC

No connection

59

GND

Ground

60

NC

No connection
