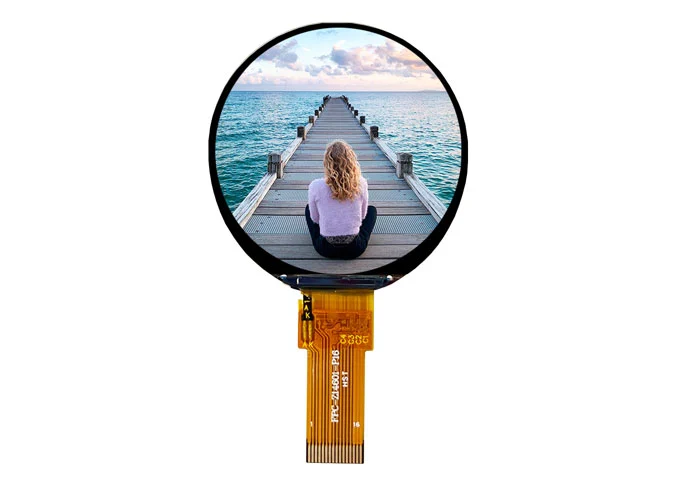

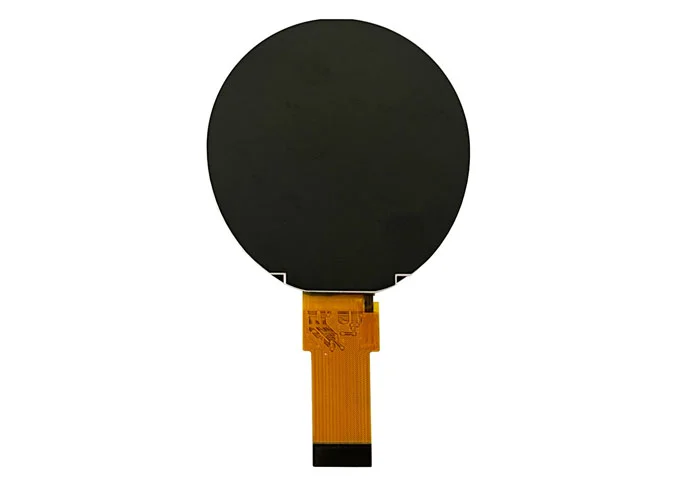

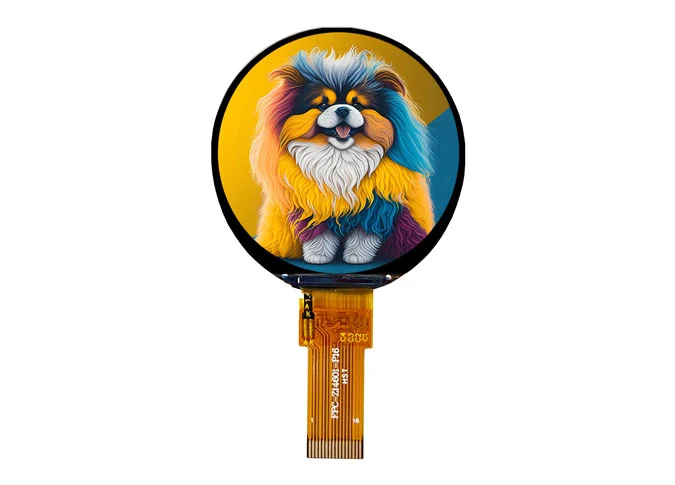

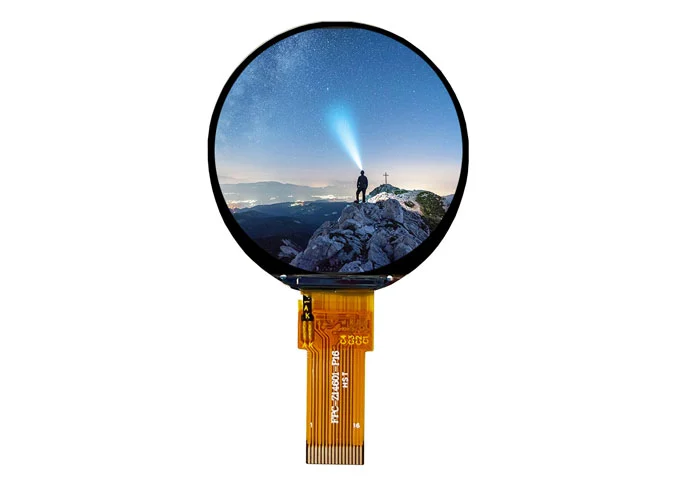

Z14601 высокое разрешение 360*360 1,46 интерфейс водителя SPI дисплея ST77916 дюйма круглый TFT LCD

1

Display Size (Diagonal)

1.46

inch

2

Display Resolution

360(H) × RGB × 360  (V)

pixels

3

Pixel Pitch

102.6x102.6

um

4

LCM Outline Dimension

(Without FPC)

39.3 (W) ×40.96 (H) ×1.6 (T)

mm

5

LCD Outline Dimension

38.936x40.706

mm

6

LCD Active Area

36.94  (W) ×36.94  (H)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

ST77916

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 2.94%    Min:2.5%

-

13

LCD Contrast Ratio

Typ.: 1200    Min:900

-

14

FPC Version

Z14601-P16 V1

-

15

Interface

4LINE-SPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/ 1Series3Parallel

-

19

Luminance

300(typ)

nit

20

Weight

0.003

g

1

GND

Power ground

2

LEDA

Power for LED back light   anode (+)

3

LEDK

Power for LED back light   cathode(-)

4

GND

Power ground

5

LCD  VCC

Power supply( 3.3V)

6

IOVCC

I/O Power supply(1.8V/3.3V)

7

GND

Power ground

8

SDA

LCM   SPI data (SDA) data input (MOSI)

9

D/CX

Display data/command selection pin in 4-line serial interface.

10

SCL

LCM   SPI clock (SCL) clock (SCLK)

1 1

CS

Chip selection pin

12

RESET

This signal will reset the device and it must be applied to properly initialize the chip,signal is active low

13

FMARK  (TE)

Tearing effect signal is used to synchronize MCU to frame memory ，if not use let this pin open.

14-16

GND

Power ground

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
