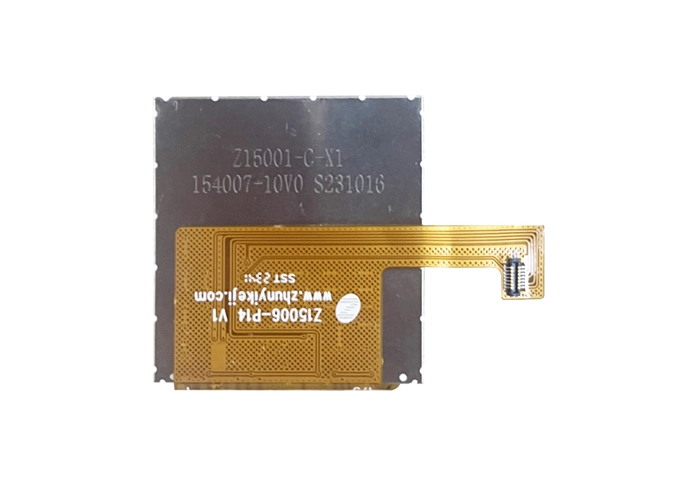

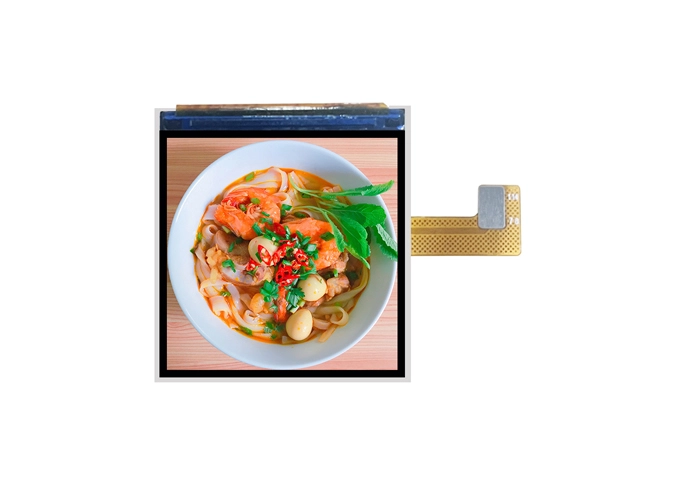

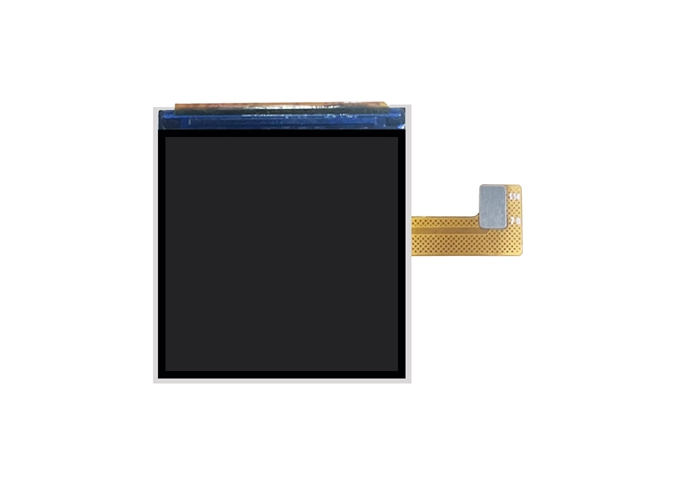

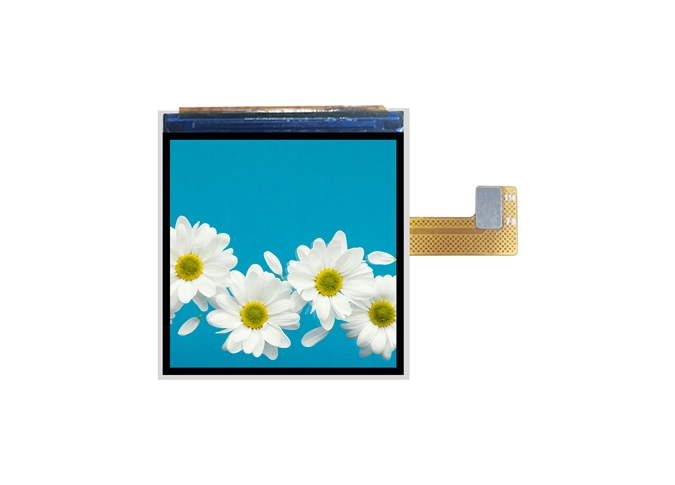

Дюйма 320x320 IPS LCD 1,5 квадрата солнечного света Z15004 читаемый интерфейс 600nits разрешения MIPI

1

Display Size (Diagonal)

1.5

inch

2

Display Resolution

320(H) × RGB × 320  (V)

pixels

3

Pixel Pitch

86.7(H)  × 86.7(V)

um

4

LCM Outline Dimension

(Without FPC)

31.52 (W) ×33.72 (H) ×1.9 (T)

mm

5

LCD Outline Dimension

30.12(H) × 33.12(V) × 0.8(T)

mm

6

LCD Active Area

27.744(H)  × 27.744(V)

mm

7

View Direction (Gray Inversion)

FULL VIEW

-

8

Driver IC

/

-

9

Pixel Arrangement

RGB-Stripe

-

10

Display Mode

Normal Black

-

11

Pixel driving Element

a-Si TFT

-

12

LCD Transmittance

Typ.: 4.3%    Min:4. 1%

-

13

LCD Contrast Ratio

Typ.: 900    Min:700

-

14

FPC Version

Z15004 V1

-

15

Interface

MIPI

-

16

Operating Temperature

-20°C~ 70°C

-

17

Storage Temperature

-30°C~ 80°C

-

18

Backlight Arrangement

LED/ 1 Series 3 Parallel (3 lights in total)

-

19

Luminance

600

nit

20

Weight

0.003

g

1

TCP

Positive polarity of low voltage differential clock signal

2

TCN

Negative polarity of low voltage differential clock signal

3

GND

System ground

4

TDP0

Positive polarity of low voltage differential data signal

5

TDN0

Negative polarity of low voltage differential data signal

6

GND

System ground

7

RESET

Reset signal input terminal. Active at    ‘L’.

8

TE

Tearing effect output

9

NC

NC

10

IOVCC

I/O Voltage        1.65V ~ 3.3V

11

VCC

Power supply                2.5V ~ 3.3V

12

NC

NC

13

NC

NC

14

NC

NC

15

LED-  (K)

Power supply for backlight cathode input terminal.

16

LED+ (A)

Power supply for backlight anode input terminal.

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault

when power on.
