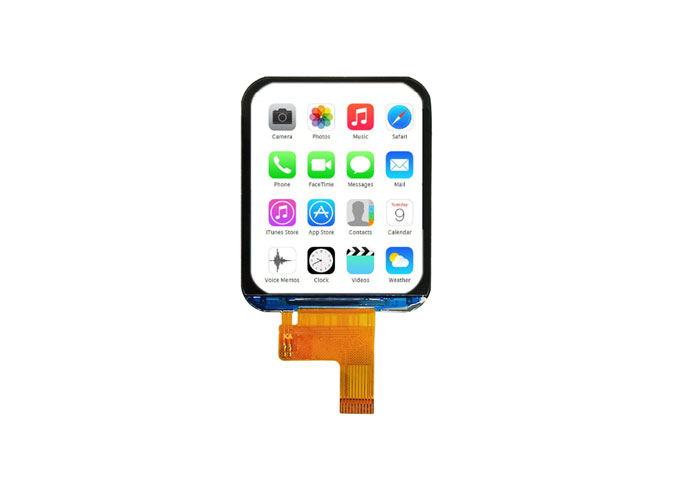

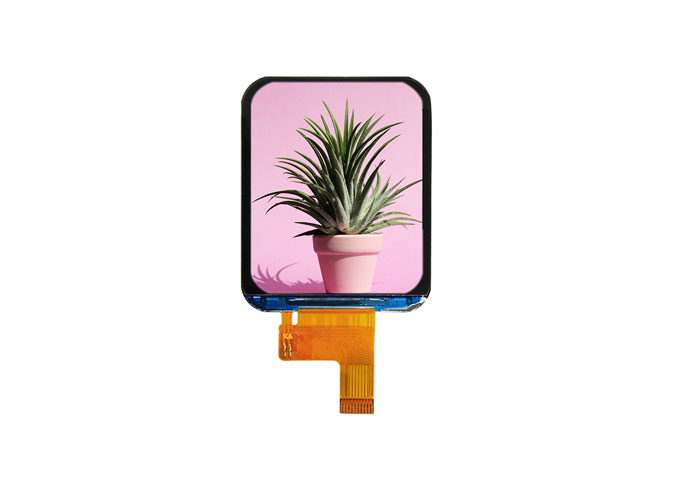

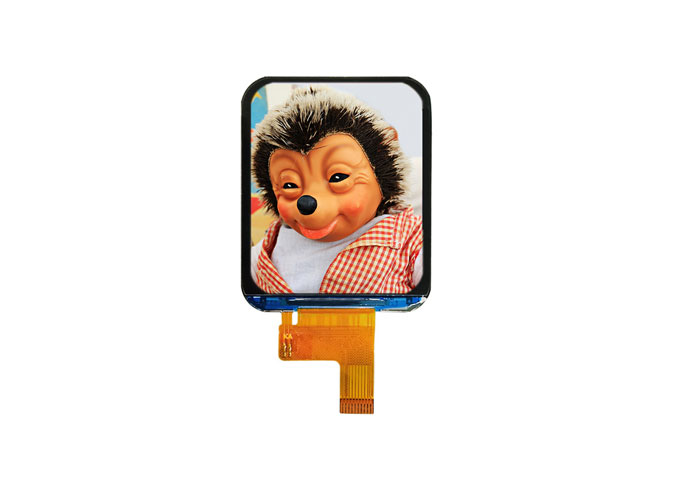

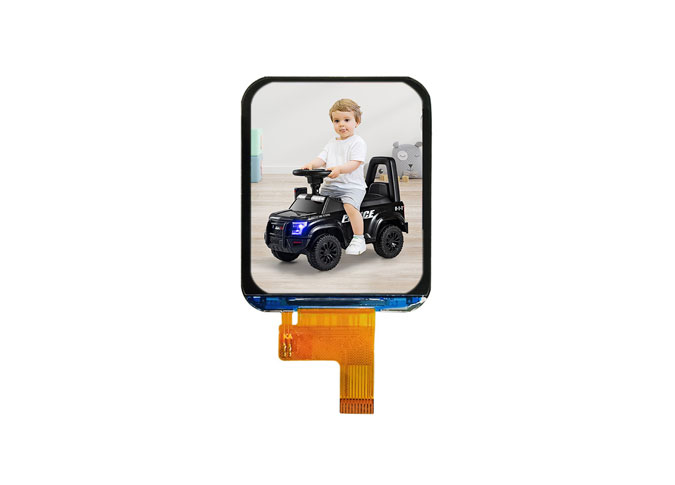

Z169001 1,69 регулятор интерфейса ST7789V модуля SPI дюйма 240*280 квадратный TFT LCD

1

Display Size (Diagonal)

1.69

inch

2

Display Resolution

240 (H) × RGB × 280 (V)

pixels

3

Pixel Pitch

116.55 (H）× 116.55 (V)

um

4

LCM Outline Dimension

(Without FPC）

30.07 (W) × 37.43 (H) × 1.6 (T)

mm

5

LCD Active Area

27.97 (W) × 32.63 (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

ST7789V3-G6

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: 5.0% Min: 5.0%

-

12

LCD Contrast Ratio

Typ.: 1000

-

13

FPC Version

Z169001-P10 V1

-

14

Interface

SPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/1 Series 3 Parallel (3 lights in total)

-

18

Luminance

Typ.:450

nit

19

Weight

TBD

kg

1

LEDK

BL LED power-.

2

GND

Ground

3

FMARK

Tearing effect output pin. Output signal low wait send image data.

4

SDA

Serial signal input/output pin.

5

RS

Select "Data or Command" pin H data; L command

6

SCL

Serial clock signal input pin

7

CS

Chip enable select pin. L: enable chip

8

RESET

System reset select pin.

9

IOVCC

Power supply: Scope of application (1.65V~ 3.3V)

10-11

VCI

Power supply: Scope of application (2.5V~3.3V）

12-13

GND

Ground

14-15

LEDA

BL LED power+.

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
