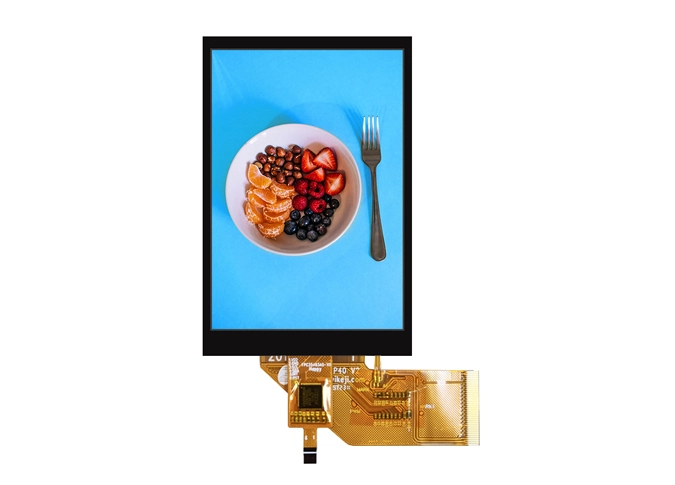

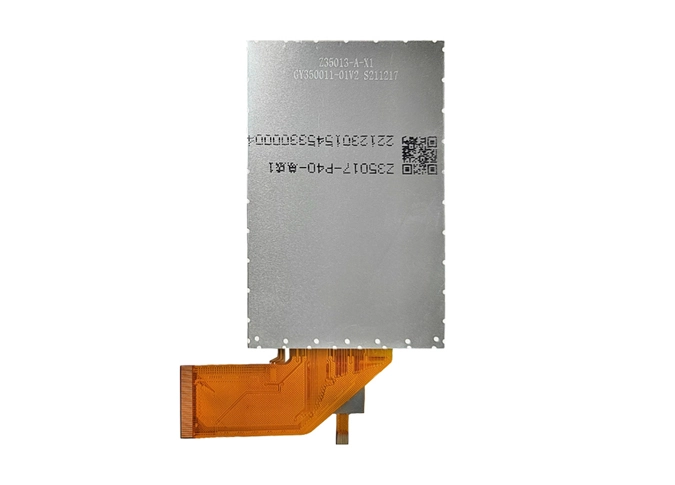

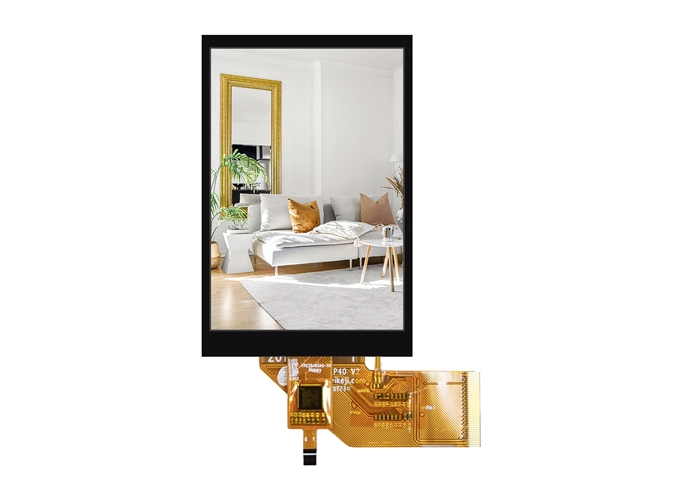

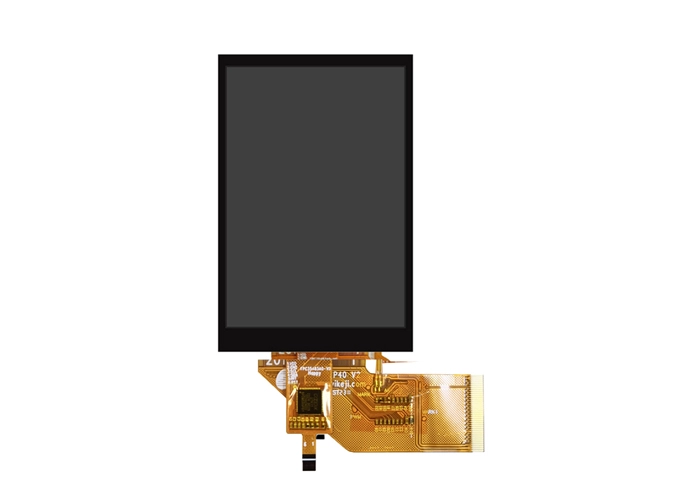

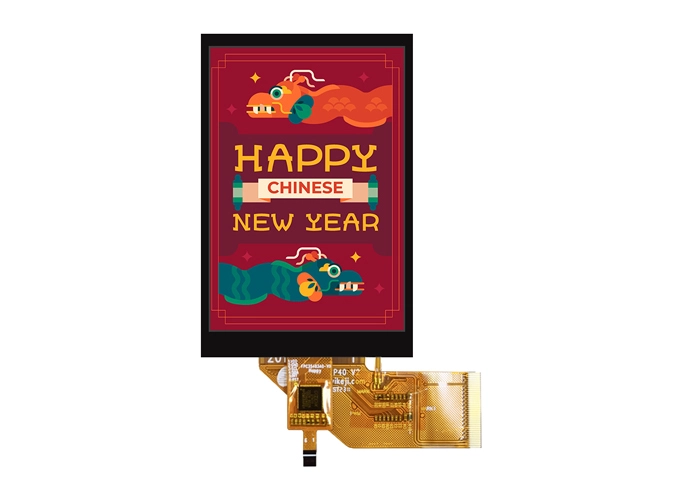

Z35017-ZC Интерфейс экрана касания 320*480 дисплея ЛКД 3,5 дюймов ИЛИ 9488 ГТ911 СПИ РГБ И2К

1

Display Size (Diagonal)

3.5

inch

2

Display Resolution

320(H） × RGB × 480（V）

pixels

3

Pixel Pitch

153(H）× 153（V）

um

4

LCM Outline Dimension

(Without FPC）

53.76 (W) ×82.39 (H) ×2.23 (T)

mm

5

CTP Outline Dimension

(Without FPC）

55.46 (W) ×83.94 (H) ×4.25 (T)

mm

6

LCD Outline Dimension

51.96 (W) × 80.22 (H) × 0.8 (T)

mm

7

LCD Active Area

48.96（W） ×73.44（H）

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ILI9488

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.05%  Min:3.45%

-

14

LCD Contrast Ratio

Typ.: 1000  Min:800

-

15

FPC Version

Z35017-P40 V3

-

16

Interface

MCU18BIT/SPI+ 18BIT RGB

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/3 Series 2 Parallel (6 lights in total)

-

20

Luminance

220

nit

21

Weight

0.035

kg

1

GND

Ground

2-3

VCI

Power supply for analog circuit

4

IM0

Interface  mode  select  PIN

5

IM1

Interface  mode  select  PIN

6

IM2

Interface  mode  select  PIN

7

RESET

Reset pin

8

VSYNC

Vertical synchronizing input signal for RGB interface

9

HSYNC

Horizontal synchronizing input signal for RGB interface

10

PCLK

Dot clock signal for RGB interface operation

11

DE

Data enable signal for RGB interface operation

12-29

DB17-DB0

DATA  BUS

30

GND

Ground

31

DOUT

SPI interface output pin

32

DIN_SDA

SPI interface input pin

33

RDX

Read enable in 8080 MCU parallel interface

34

WRX _SCL

Write enable in MCU parallel interface In SPI mode, this pin is used as SCL

35

DCX

Display data/command selection (RS) pin in MCU interface

36

CSX

Chip selection pin

37

LEDA

LED Anode

38

LEDK1

LED Cathode

39

LEDK2

LED Cathode

40

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

1

TP-VDD(3.3V)

TP  POWER  SUPPLY(3.3V)

3

TP-GND

Ground

4

TP-SCL(3.3V)

TP  I2C clock (SCL) clock (SCLK)(3.3V)

4

TP-SDA(3.3V)

TP  I2C data (SDA) data input (MOSI)(3.3V)

5

TP-INT(3.3V)

TP  Interrupt  PIN(3.3V)

6

TP-RESET(3.3V)

TP  Reset  PIN(3.3V)
