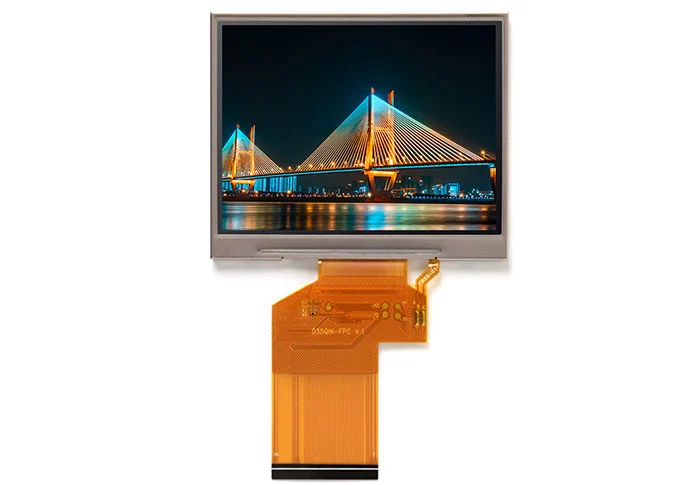

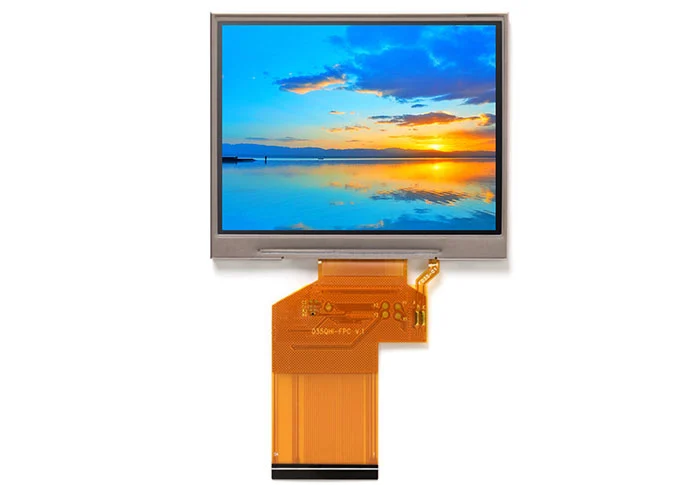

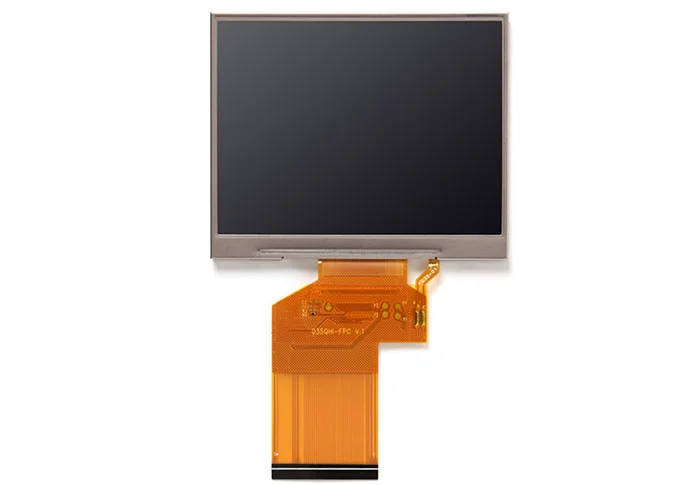

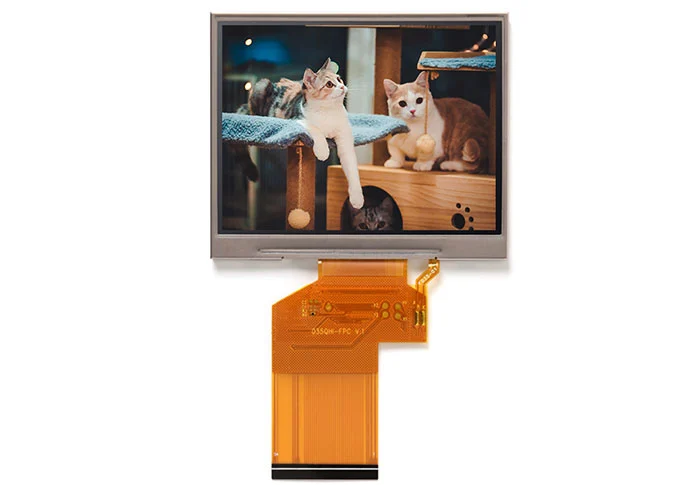

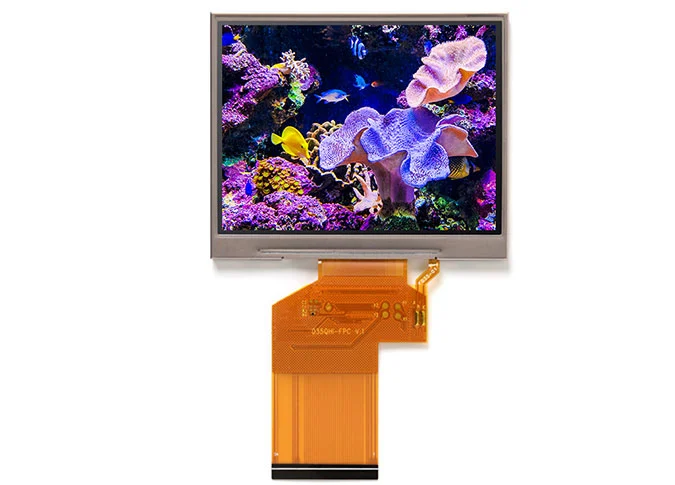

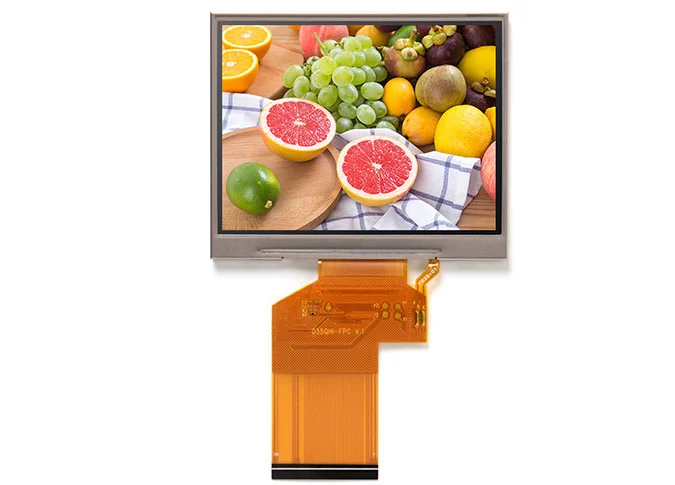

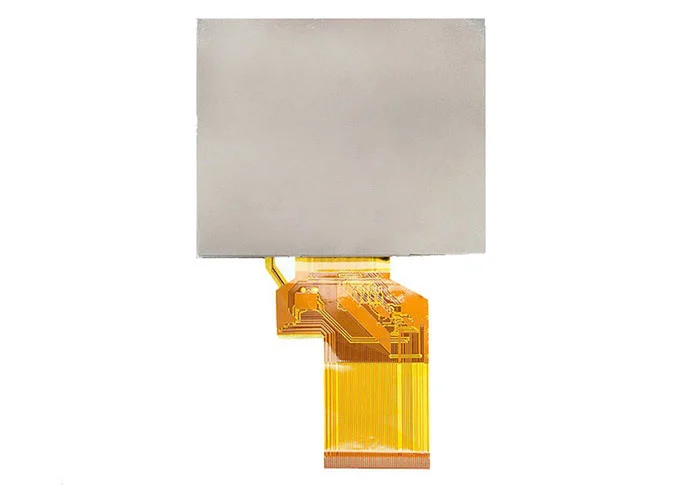

З35101 3,5 интерфейс РГБ регулятора взгляда НВ3052К дисплея 450 нит дюйма 640*480 ЛКД полно-

Screen Size

3.5 inches

Diagonal

Number of Pixel

640 RGB (H) x 480 (V)

Pixels

Display area

70.08 (H) x 52.56 (V)

mm

Pixel pitch

0.219 (H) x 0.219 (V)

mm

Outline Dimension

76.84 x 63.84 x 3.2 (Typ)

mm

Pixel arrangement

RGB Vertical stripe

――

Display mode

Normally Black/Transmissive

――

Viewing Direction

ALL VIEWING

――

Display Color

16.7M

――

Luminance(cd/m2)

350(TYP)

nit

Contrast Ratio

800

――

Surface treatmen

Antiglare

――

Interface

24bit-TTL

Back-light

LED Side-light type

――

Drive IC

NV3052C-RGB

Operation Temperature

-20~70

℃

Storage Temperature

-30~80

℃

Weight

――

g

1-2

LED_K

P

Backlight LED Ground

3-4

LED_A

P

Backlight LED Power

5

NC

-

No connection

6

NC

-

No connection

7

NC

-

No connection

8

RESET

I

Reset pin, This is an active low signal

9

SPENA

I

SPI interface Data Enable Signal

10

SPCLK

I

SPI interface Clock

11

SPDAT

I

SPI interface Data

12-19

B0-B7

I

Blue Data Bit

20-27

G0-G7

I

Green Data Bit

28-35

R0-R7

I

Red Data Bit / DX0-DX7

36

HSYNC

I

Horizontal Sync Input

37

VSYNC

I

Vertical Sync Input

38

DCLK

I

Dot Data Clock

39-40

NC

-

No connection

41-42

VCC

P

Digital Power

43

NC

-

No connection

44

NC

-

No connection

45-47

NC

-

No connection

48

NC

-

No connection

49

NC

-

No connection

50

NC

-

No connection

51

NC

-

No connection

52

DE

I

Data Enable Input

53-54

GND

P

Ground
