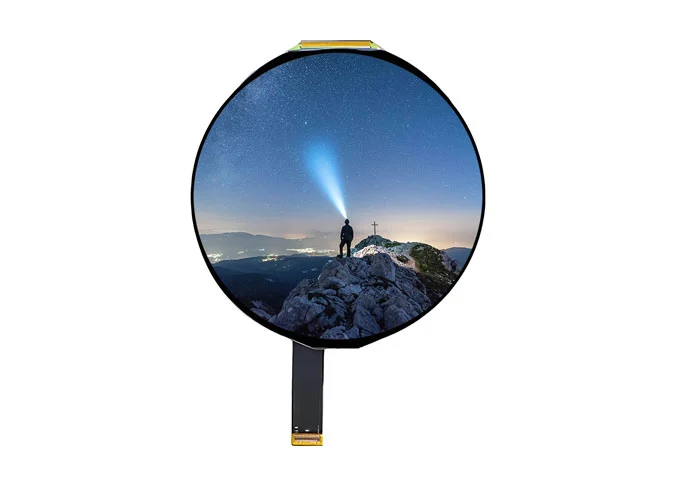

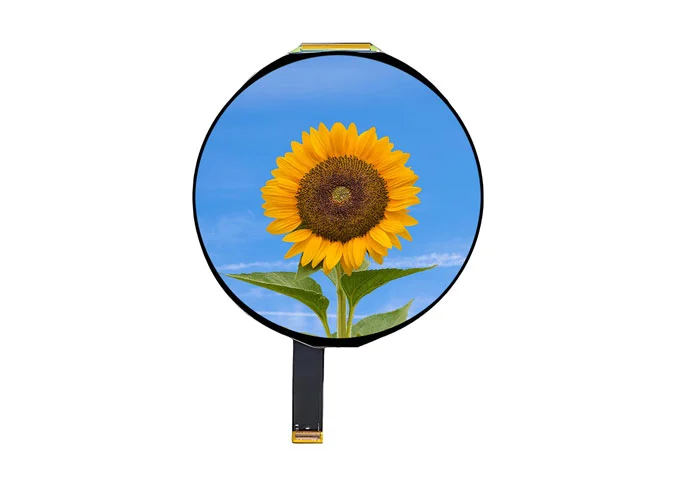

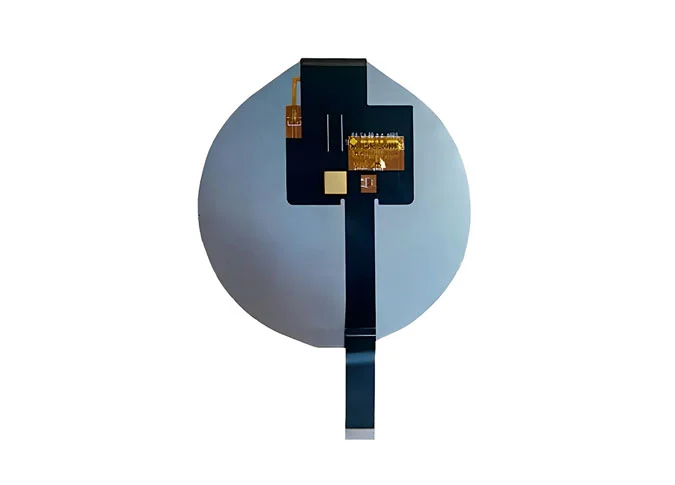

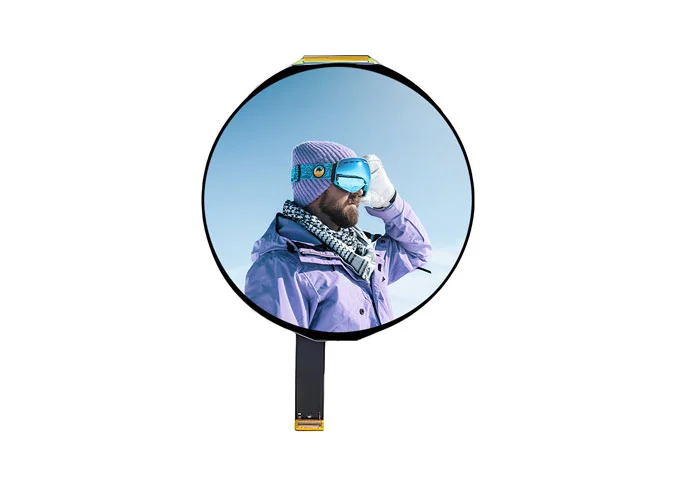

З50006 большой водитель интерфейса ХС8399 МИПИ экрана дюйма 1080*1080 ТФТ ЛКД угла взгляда 5 ИПС размера

Main Panel

Display area(AA)

127.008(H)*127.008(V)

mm

-

Driver element

TFT active matrix

-

-

Display colors

16.7M

colors

-

Number of pixels

1080(RGB)*1080

dots

-

TFT Pixel arrangement

RGB vertical stripe

-

-

Pixel pitch

0. 1176(H)*0. 1176(V)

mm

-

Viewing angle

ALL

o'clock

-

Controller IC

HX8399

-

-

LCM Interface

1/2/3/4-LANE MIPI

-

-

Display mode

Transmissive/Normally Black

-

-

Operating temperature

-20~+ 60

C

-

Storage temperature

-30~+75

C

-

Module

size

Horizontal(H)

136.531

mm

-

Vertical(V)

132.208

mm

-

Depth(D)

1 98

mm

-

Weight

70

g

-

1

GND

Ground.

P

2

GND

Ground.

P

3

LAN2  P

_

Disp    MIPI    lane2+.

I

4

LEDK

LED cathode.

P

5

LAN2  N

_

Disp    MIPI    lane2-.

I

6

LEDK

LED cathode.

P

7.

GND

Ground.

P

8

GND

Ground.

P

9

LAN1  P

_

Disp    MIPI    Blane    1+.

I

10

LEDA

LED Anode.

P

11

LAN1  N

_

Disp    MIPI    lane    1-.

I

12

LEDA

LED Anode.

P

13

GND

Ground.

P

14

GND

Ground.

P

15

CLK  P

_

Disp    MIPICLK+.

I

16

ID  PIN2

_

ID     pu to1. 8V(LCM).     If not    used open.

P

17

CLK  N

_

Disp    MIPICLK-.

I

18

ID  PIN1

_

ID     pd to GND(LCM) .     If not     used open.

P

19

GND

Ground.

P

20

GND

Ground.

P

21

LAN0  P

_

Disp    MIPI    lane 0+.

I

22

IOVCC

Disp digital    power( 1.8V).

P

23

LAN0  N

_

Disp    MIPI    lane0-.

I

24

IOVCC

Disp digital    power( 1.8V).

P

26

GND

Ground.

P

27

LAN3  P

_

Disp    MIPI    lane 3+.

I

28

NC

NC

29

LAN3  N

_

Disp    MIPI    lane 3-.

I

30

VSN/VDD-

Display -5V analog     rail.

P

31

GND

Ground.

P

32

VSN/VDD-

Display -5V analog     rail.

P

33

NC

NC

34

NC

NC

35

NC

NC

36

VSP/VDD+

Disp +5V analog     rail.

P

37

GND

Ground.

P

38

VSP/VDD+

Disp +5V analog    rail     .

P

39

NC

NC

40

NC

NC

41

NC

NC

42

GND

Ground.

P

43

NC

44

LEDPWM

Backlight     pwm output,     If not     used open.

O

45

NC

NC

46

TE

Disp tearing effect out,      If not     used open.

O

47

GND

Ground.

P

48

RESET

Disp    reset.

I

49

GND

Ground.

P

50

GND

Ground.

P
