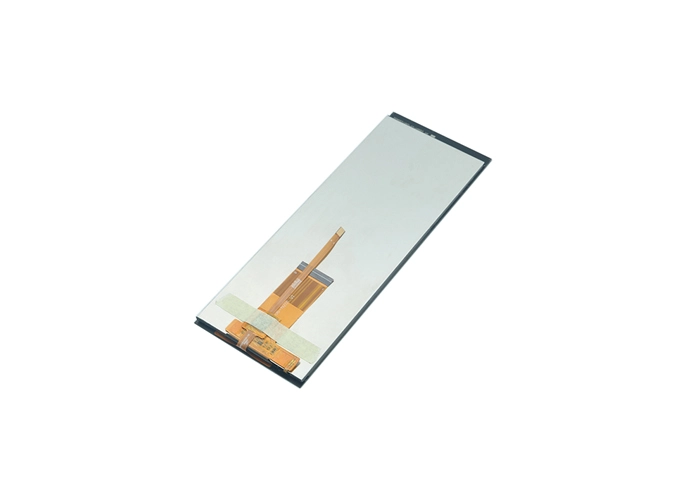

Z686006-ZC 6,86 интерфейс экрана касания И2К дисплея дюйма 480*1280 ТФТ ЛКД для автомобильной аппаратуры машины напитка

1

Display Size (Diagonal)

6.86

inch

2

Display Resolution

480(H） × RGB × 1280（V）

pixels

3

Pixel Pitch

41.8(H）× 125.4（V）

um

4

LCM Outline Dimension

(Without FPC）

171.79 (W) ×65.72 (H) ×2.6 (T)

mm

5

LCD Outline Dimension

169.01 (W) × 63.39 (H) × 0.8 (T)

mm

6

TLCM Outline Dimension

(Without FPC）

181.40 (W) ×67.00 (H) ×4.18 (T)

mm

7

LCD Active Area

160.51（W） ×60.19（H）

mm

8

View Direction (Gray Inversion)

FULL VIEW

-

9

Driver IC

ICNL9707

-

10

Pixel Arrangement

RGB-Stripe

-

11

Display Mode

Normal Black

-

12

Pixel driving Element

a-Si TFT

-

13

LCD Transmittance

Typ.: 4.4%  Min:3.74%

-

14

LCD Contrast Ratio

Typ.: 1500  Min:1000

-

15

FPC Version

Z686006-NZ01-I977-Y1

-

16

Interface

MIPI

-

17

Operating Temperature

-20°C~ 70°C

-

18

Storage Temperature

-30°C~ 80°C

-

19

Backlight Arrangement

LED/4 Series 4 Parallel (16 lights in total)

-

20

Luminance

400

nit

21

Weight

0.105

kg

1-2

VCC

POWER SUPPLY（3.3V）

3

IOVCC

I/O  POWER SUPPLY（1.8V）

4

GND

Ground

5

RESET

LCM  RESET  PIN

6

IOVCC

I/O  POWER SUPPLY（1.8V）

7

NC

No Connection

8

ID2

LCM  ID  PIN

9

ID1

LCM  ID  PIN

10-15

NC

No Connection

16

GND

Ground

17

D3N

Negative MIPI differential data input

18

D3P

Positive MIPI differential data input

19

GND

Ground

20

D2N

Negative MIPI differential data input

21

D2P

Positive MIPI differential data input

22

GND

Ground

23

CLKN

Negative MIPI differential CLOCK input

24

CLKP

Positive MIPI differential CLOCK input

25

GND

Ground

26

D1N

Negative MIPI differential data input

27

D1P

Positive MIPI differential data input

28

GND

Ground

29

D0N

Negative MIPI differential data input

30

D0P

Positive MIPI differential data input

31-32

GND

Ground

33-36

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

37

NC

No Connection

38-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RESET voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.

1

TP_VDD

TP Input Power voltage(3.3V)

2

TP_SDA

TP  I2C data (SDA) data input (MOSI)(1.8V)

3

TP_SCL

TP  I2C clock (SCL) clock (SCLK)(1.8V)

4

GND

Ground

5

TP_INT

TP  Interrupt  PIN

6

TP_RESET

TP  Reset  PIN
