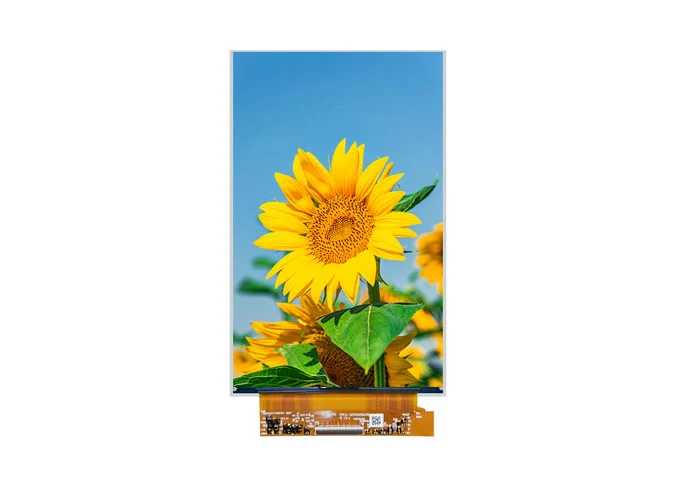

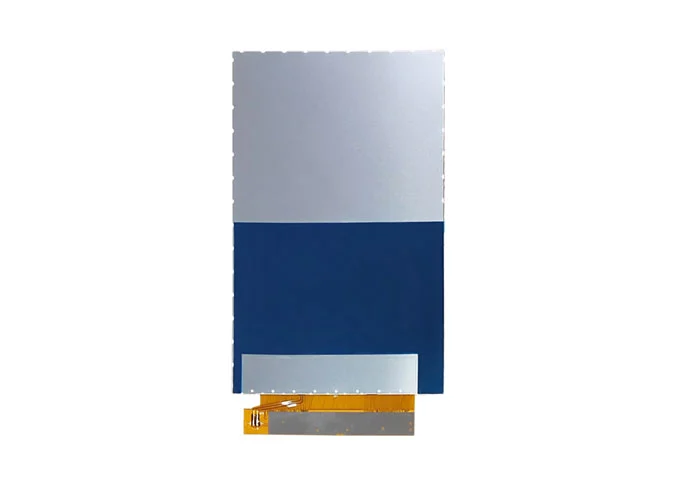

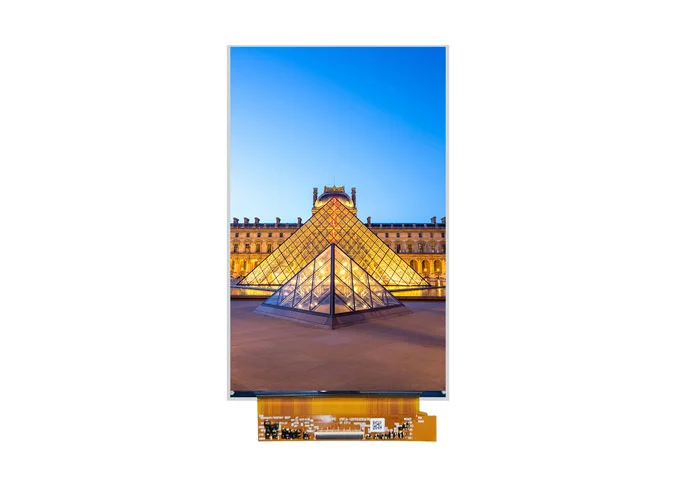

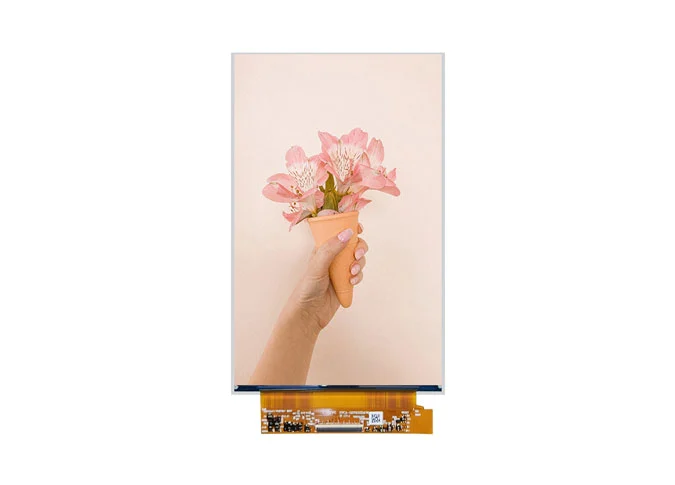

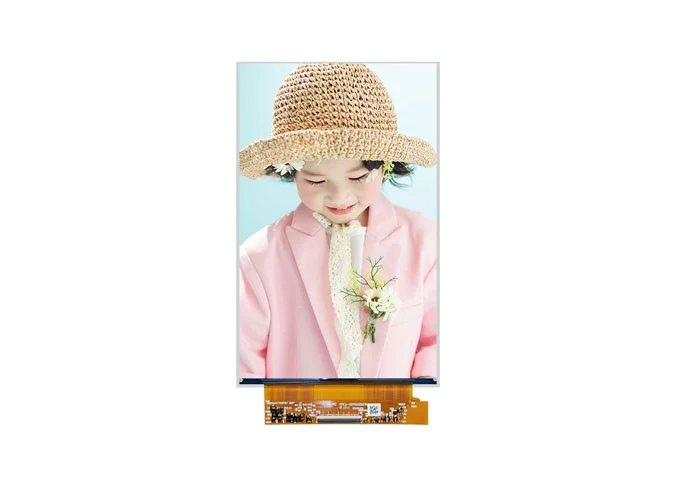

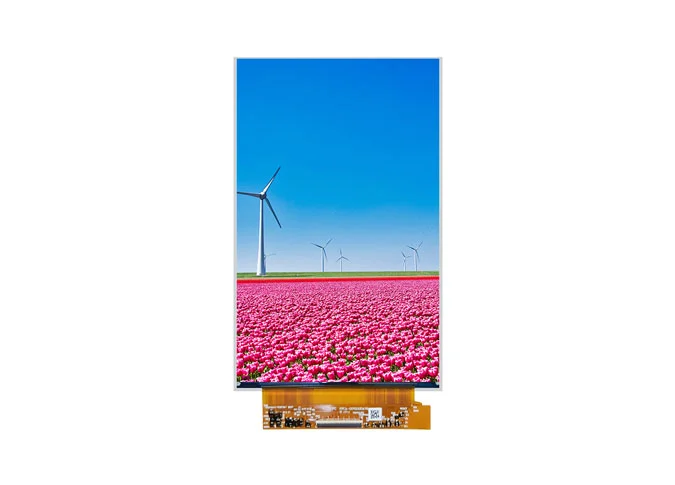

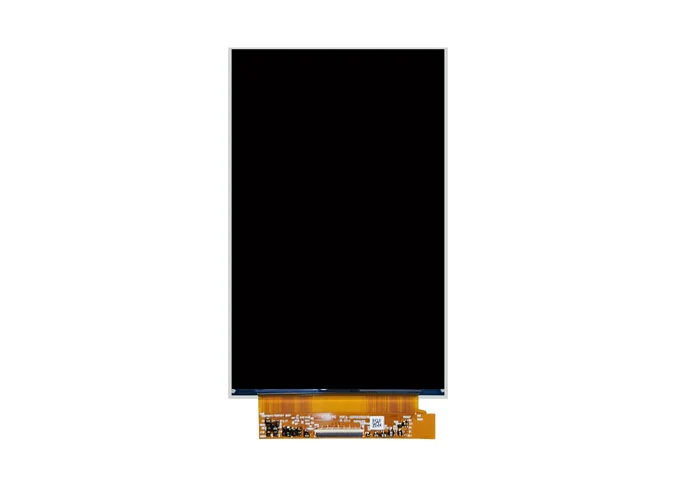

З70102 ФХД 7 яркость интерфейса 1000кд/м2 МИПИ дисплея дюйма 1200*1920 ИПС ЛКД

1

Display Size (Diagonal)

7.0

inch

2

Display Resolution

1200(H)  × RGB × 1920  (V)

pixels

3

Pixel Pitch

26.25(H) × 78.75  (V)

um

4

LCM Outline Dimension

(Without FPC)

99.81 (W) ×161.66 (H) ×2. 18 (T)

mm

5

LCD Active Area

94.5  (W)  ×151.2  (H)

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

HX8279-D01

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

Typ.: 3.6%    Min:3.05%

-

12

LCD Contrast Ratio

Typ.: 1200    Min:1000

-

13

FPC Version

-

14

Interface

MIPI

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/5 Series 4 Parallel (20 lights in total)

-

18

Luminance

1000  (TYP)

nit

19

Weight

TBD

g

1

NC

No Connection

2-3

IOVCC

I/O    POWER SUPPLY

4

GND

Ground

5

RST

LCM    RESET    PIN

6

NC

No Connection

7

GND

Ground

8

MIPI  0N

Negative MIPI differential data input

9

MIPI  0P

Positive MIPI differential data input

10

GND

Ground

11

MIPI  1N

Negative MIPI differential data input

12

MIPI  1P

Positive MIPI differential data input

13

GND

Ground

14

MIPI  CKN

Negative MIPI differential CLOCK input

15

MIPI  CKP

Positive MIPI differential CLOCK input

16

GND

Ground

17

MIPI  2N

Negative MIPI differential data input

18

MIPI  2P

Positive MIPI differential data input

19

GND

Ground

20

MIPI  3N

Negative MIPI differential data input

21

MIPI  3P

Positive MIPI differential data input

22

GND

Ground

23

HS

Horizontal sync. Signal in RGB I/F.

24

VS

Vertical sync. Signal in RGB I/F.

25

GND

Ground

26

NC/TE

No Connection/Tearing    Effect    PIN

27

PWM0

LCM    PWM    PIN

28

NC/BIST

No Connection/Built-in Self-Test    PIN

29

NC

No Connection

30

GND

Ground

31-32

LEDK

POWER SUPPLY- FOR BACKLIGHT CATHODE

33

NC

No Connection

34-35

VSN

Negative Voltage input

36

NC

No Connection

37-38

VSP

Positive Voltage input

39-40

LEDA

POWER SUPPLY- FOR BACKLIGHT ANODE

RST voltage should be consistent with IOVCC voltage, or there probably is black screen fault when power on.
