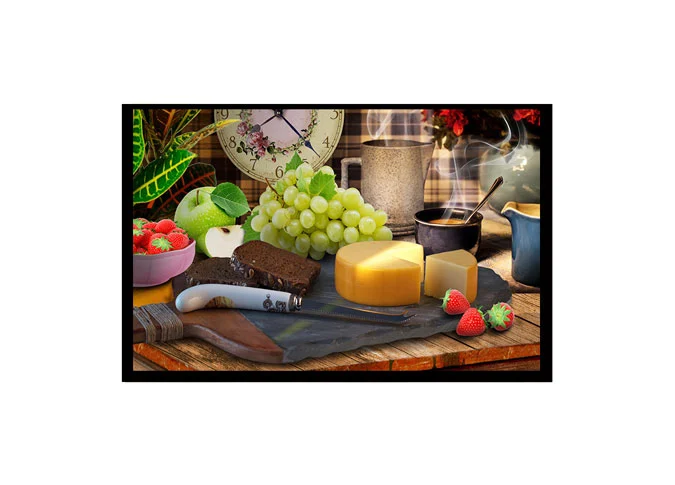

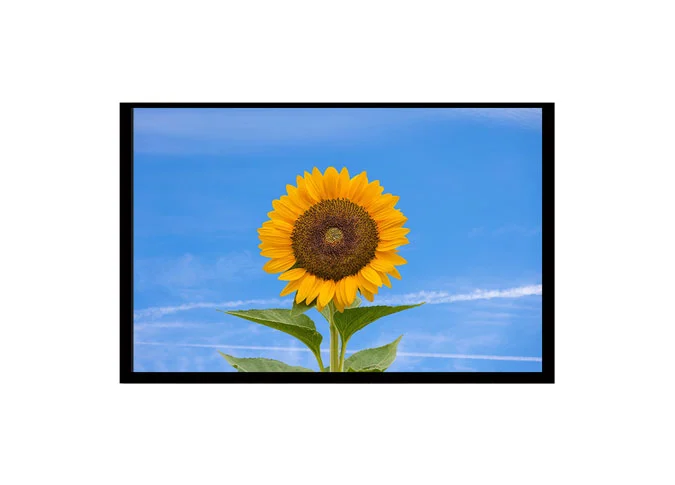

Яркость 800кд/м2 интерфейса дисплея ЛВДС дюйма 1280*720 ИПС ТФТ ЛКД З80051 720П 8

1

Display Size (Diagonal)

8.0

inch

2

Display Resolution

1280(H） × RGB × 720（V）

pixels

3

Pixel Pitch

138(H）× 138（V）

um

4

LCM Outline Dimension

(Without FPC）

192.80 (W) ×116.90 (H) ×6.40 (T)

mm

5

LCD Active Area

176.64（W） ×99.36（H）

mm

6

View Direction (Gray Inversion)

FULL VIEW

-

7

Driver IC

/

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal Black

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

Typ.: 900  Min:600

-

13

FPC Version

Z80051-P31 V1

-

14

Interface

LVDS

-

15

Operating Temperature

-30°C~ 85°C

-

16

Storage Temperature

-40°C~ 90°C

-

17

Backlight Arrangement

LED/7 Series 3 Parallel (21 lights in total)

-

18

Luminance

Typ.:800  Min:650

nit

19

Weight

TBD

kg

1

NC

MUST be non-connection.

2

VDD

Power supply 3.3V(Type)

3

VDD

Power supply 3.3V(Type)

4

GND

Power Ground

5

RESET

Global reset signal

6

STBYB

Standby mode control signal

7

GND

Power Ground

8

SDA

Not connect

9

SCL

Not connect

10

CSB

Not connect

11

GND

Power Ground

12

TB

Vertical shift direction (gate output) selection

13

RL

Horizontal shift direction (source output) selection

14

GND

Power Ground

15

LV0N

Negative LVDS Differential data input(0)

16

LV0P

Positive LVDS Differential data input(0)

17

GND

Power Ground

18

LV1N

Negative LVDS Differential data input(1 )

19

LV1P

Negative LVDS Differential data input(1 )

20

GND

Power Ground

21

LV2N

Negative LVDS Differential data input(2 )

22

LV2P

Positive LVDS Differential data input(2 )

23

GND

Power Ground

24

CLKN

Negative LVDS Differential clock input

25

CLKP

Positive LVDS Differential clock input

26

GND

Power Ground

27

LV3N

Negative LVDS Differential data input(3 )

28

LV3P

Positive LVDS Differential data input(3 )

29

GND

Power Ground

30

VDDOT

Power input for OTP programming

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.
