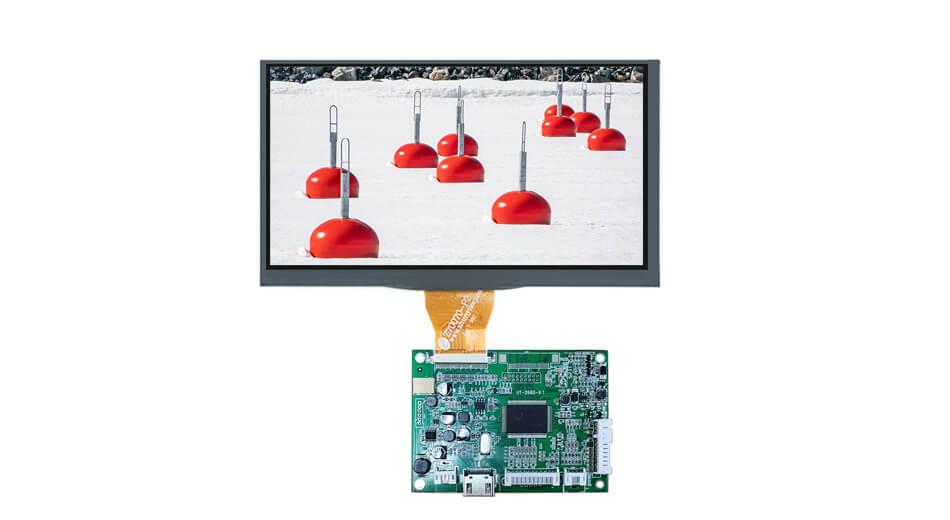

Этот 7-дюймовый ЖК-экран HDMI TFT был создан специально для Raspberry Pi. Все, что вам нужно сделать, чтобы начать, это подключить две платы драйверов.

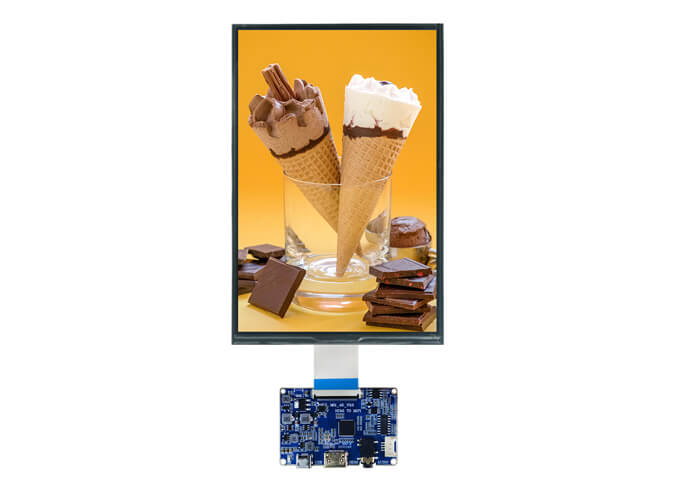

No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 10.1 | inch |
2 | Display Resolution | 800 (H) × RGB × 1280 (V） | pixels |
3 | Pixel Pitch | 56.4 (H) × 169.2 (V） | um |

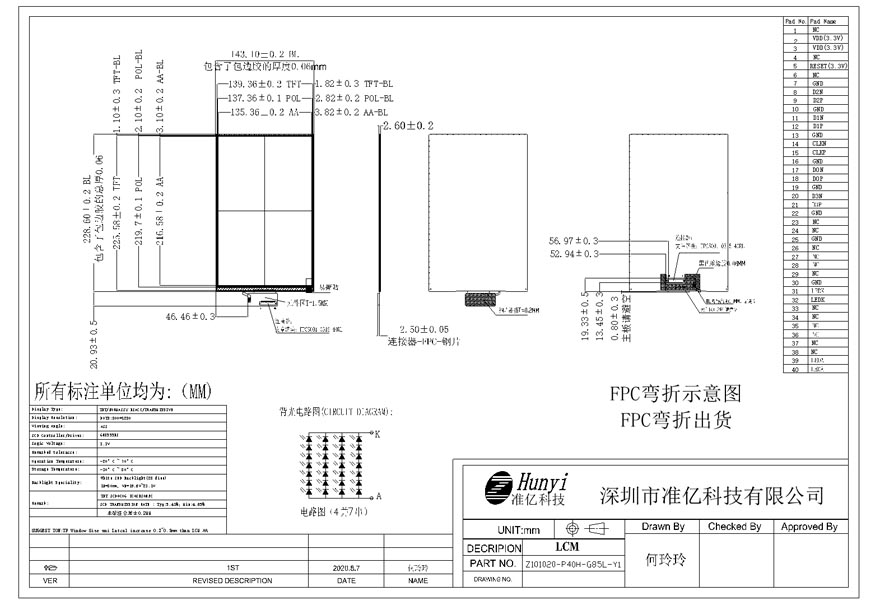

4 | LCM Outline Dimension (Without FPC） | 143.10 (W) × 228.60 (H) × 2.6 (T) | mm |
5 | LCD Outline Dimension | 139.36 (W) × 225.80 (H) × 0.8 (T) | mm |
6 | LCD Active Area | 135.36 (W) × 216.58 (H) | mm |
7 | View Direction (Gray Inversion) | FULL VIEW | - |
8 | Driver IC | GH8555BL | - |
9 | Pixel Arrangement | RGB-Stripe | - |
10 | Display Mode | Normal Black | - |
11 | Pixel driving Element | a-Si TFT | - |
12 | LCD Transmittance | Typ.: 5.41% Min: 4.65 | - |
13 | LCD Contrast Ratio | Typ.: 1000 Min: 800 | - |
14 | FPC Version | Z101020-P40H V1 | - |
15 | Interface | MIPI | - |
16 | Operating Temperature | -20°C~ 70°C | - |
17 | Storage Temperature | -30°C~ 80°C | - |
18 | Backlight Arrangement | LED/7 Series 4 Parallel (28 lights in total) | - |
19 | Luminance | 310 | nit |
20 | Weight | 0.183 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1 | NC | No Connection |
2-3 | VDD | POWER SUPPLY (3.3V） |
4 | NC | No Connection |
5 | RESET | LCM RESET PIN (3.3V) |
6 | NC | No Connection |
7 | GND | Ground |
8 | D2N | Negative MIPI differential data input |
9 | D2P | Positive MIPI differential data input |
10 | GND | Ground |
11 | D1N | Negative MIPI differential data input |
12 | D1P | Positive MIPI differential data input |
13 | GND | Ground |
14 | CLKN | Negative MIPI differential CLOCK input |
15 | CLKP | Positive MIPI differential CLOCK input |
16 | GND | Ground |
17 | D0N | Negative MIPI differential data input |
18 | D0P | Positive MIPI differential data input |
19 | GND | Ground |
20 | D3N | Negative MIPI differential data input |
21 | D3P | Positive MIPI differential data input |
22 | GND | Ground |
23-24 | NC | No Connection |
25 | GND | Ground |
26-29 | NC | No Connection |
30 | GND | Ground |
32-32 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
33-38 | NC | No Connection |
39-40 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
