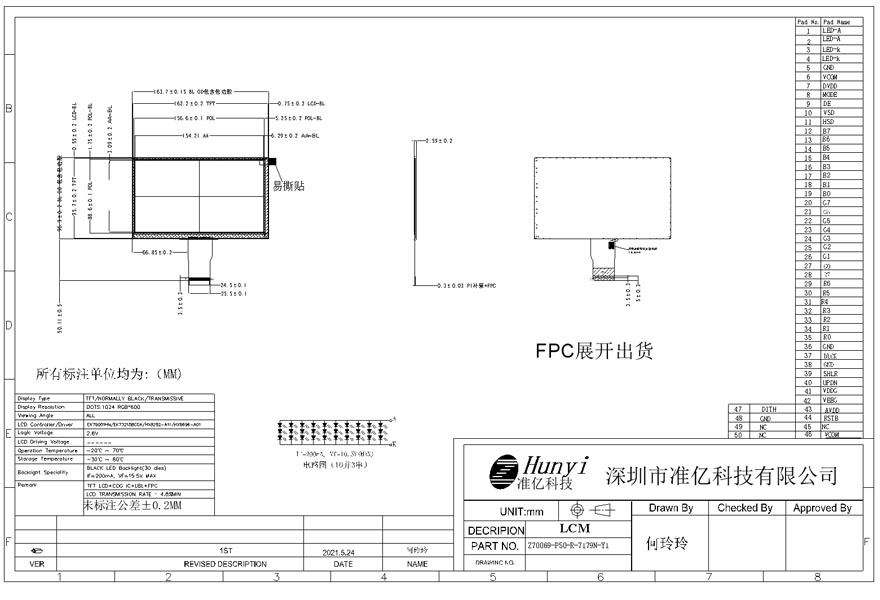

Z70069HD 1024*600 7-дюймовый горизонтальный дисплей HDMI Поддержка сенсорного экрана-это 7-дюймовый ЖК-дисплей hdmi TFT с сенсорным дисплеем с HDMI VGA, видео, платой драйвера сигнала av для портативных продуктов, промышленности и безопасности.
No. | Item | Specification | Unit |
1 | Display Size (Diagonal) | 7.0 | inch |
2 | Display Resolution | 1024 (H) × RGB × 600 (V） | pixels |
3 | Pixel Pitch | 50.2 (H) × 143.2 (V） | um |
4 | LCM Outline Dimension (Without FPC） | 163.7 (W) × 96.9 (H) × 2.59 (T) | mm |
5 | LCD Outline Dimension | 162.2 (W) × 95.7 (H) × 1.0 (T) | mm |
6 | LCD Active Area | 154.21 (W) × 85.92 (H) | mm |
7 | View Direction (Gray Inversion) | FULL VIEW | - |
8 | Driver IC | EK79001HN+EK73215BCGA | - |
9 | Pixel Arrangement | RGB-Stripe | - |
10 | Display Mode | Normal Black | - |
11 | Pixel driving Element | a-Si TFT | - |
12 | LCD Transmittance | Typ.: 5.0% Min: 4.8% | - |
13 | LCD Contrast Ratio | Typ.: 800 | - |
14 | FPC Version | Z70042-HB2509-R V1 | - |
15 | Interface | RGB | - |
16 | Operating Temperature | -20°C~ 70°C | - |
17 | Storage Temperature | -30°C~ 80°C | - |
18 | Backlight Arrangement | LED/3 Series 10 Parallel (30 lights in total) | - |
19 | Luminance | 710 | nit |
20 | Weight | 0.088 | kg |
PIN NO. | PIN DEF. | FUNCTION DESC. |
1-2 | LEDA | POWER SUPPLY- FOR BACKLIGHT ANODE |
3-4 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
5 | GND | Ground |
6 | VCOM | Common Voltage |
7 | DVDD | POWER SUPPLY |
8 | MODE | DE / HV mode select mode PIN |
9 | DE | Data Enable |
10 | VSD | Vertical synchronize Signal |
11 | HSD | Horizontal synchronize Signal |
12-19 | B7-B0 | DATA BUS |
20-27 | G7-G0 | DATA BUS |
28-35 | R7-R0 | DATA BUS |
36 | GND | Ground |
37 | DCLK | Pixel clock signal in RGB I/F |
38 | GND | Ground |
39 | SHLR | Source right or left sequence control PIN |
40 | UPDN | Gate up or down scan control PIN |
41 | VDDE | TFT Gate ON Voltage |
42 | VEEG | TFT Gate OFF Voltage |
43 | AVDD | Power For Analog Circuit |
44 | RSTB | LCM RESET PIN |
45 | NC | No Connection |
46 | VCOM | Common Voltage |
17 | DITH | Dithering function enable control PIN |
48 | GND | Ground |
49-50 | NC | No Connection |
RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on. | ||
