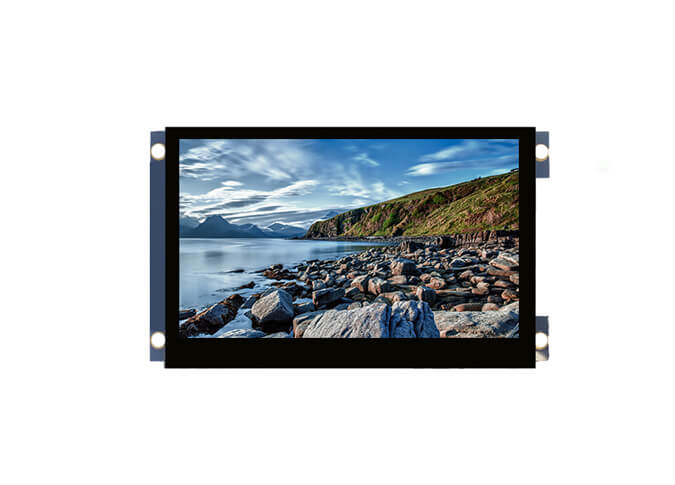

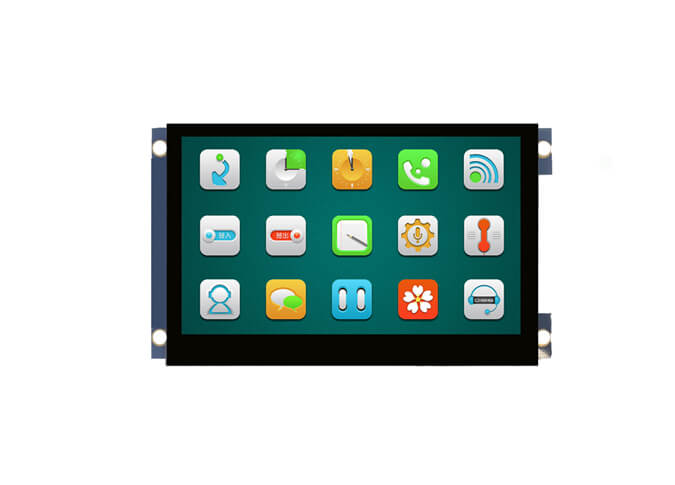

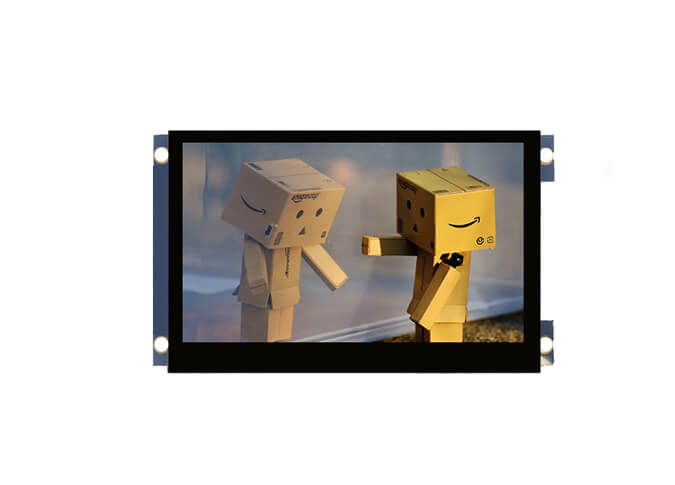

Z43036 4,3 дюйма 480*272 емкостный сенсорный экран MCU контроллер платы ILI6483 драйвер

1

Display Size (Diagonal)

4.3

inch

2

Display Resolution

480 (H) × RGB × 272 (V)

pixels

3

Pixel Pitch

198 (H) × 198 (V)

um

4

PCB Outline Dimension

(Without FPC）

118.32 (W) × 67.35 (H) × 7.15 (T)

mm

5

LCD Active Area

95.04 (W) × 53.86 (H）

mm

6

View Direction (Gray Inversion)

12 O' CLOCK

-

7

Driver IC

ILI6485

-

8

Pixel Arrangement

RGB-Stripe

-

9

Display Mode

Normal White

-

10

Pixel driving Element

a-Si TFT

-

11

LCD Transmittance

/

-

12

LCD Contrast Ratio

Typ.: 500 Min: 300

-

13

FPC Version

Z43036-P40 V1

-

14

Interface

MCU

-

15

Operating Temperature

-20°C~ 70°C

-

16

Storage Temperature

-30°C~ 80°C

-

17

Backlight Arrangement

LED/7 Series 1 Parallel (7 lights in total)

-

18

Luminance

Typ.: 300

nit

19

Weight

/

kg

1-2

GND

Ground

3

CS

Chip selection signal PIN

4

RS

Select "Data or Command" pin

5

WR

Write enable in 8080 MCU parallel interface

6

RD

Read enable in 8080 MCU parallel interface

7

RST

LCM RESET PIN

8-23

DB0-DB15

DATA BUS

24

GND

Ground

25

BL_CTRL

BL Control PIN

26-29

GPIO3-GPIO0

I/O PIN

30

VCC

POWER SUPPLY

31

NC

No Connection

32

CTP_SDA

TP I2C data (SDA) data input (MOSI)

33

CTP_INT

TP Interrupt PIN

34

NC

No Connection

35

CTP_RST

TP RESET PIN

36

CTP_SCL

TP I2C clock (SCL) clock (SCLK)

37-38

NC

No Connection

39-40

GND

Ground

RESET voltage should be consistent with VDDI voltage, or there probably is black screen fault when power on.

1

RST

TP RESET PIN

2

VDD

TP POWER SUPPLY

3

GND

Ground

4

INT

TP Interrupt PIN

5

SCL

TP I2C clock (SCL) clock (SCLK)

6

SDA

TP I2C data (SDA) data input (MOSI)
